HeartStart AED Pads

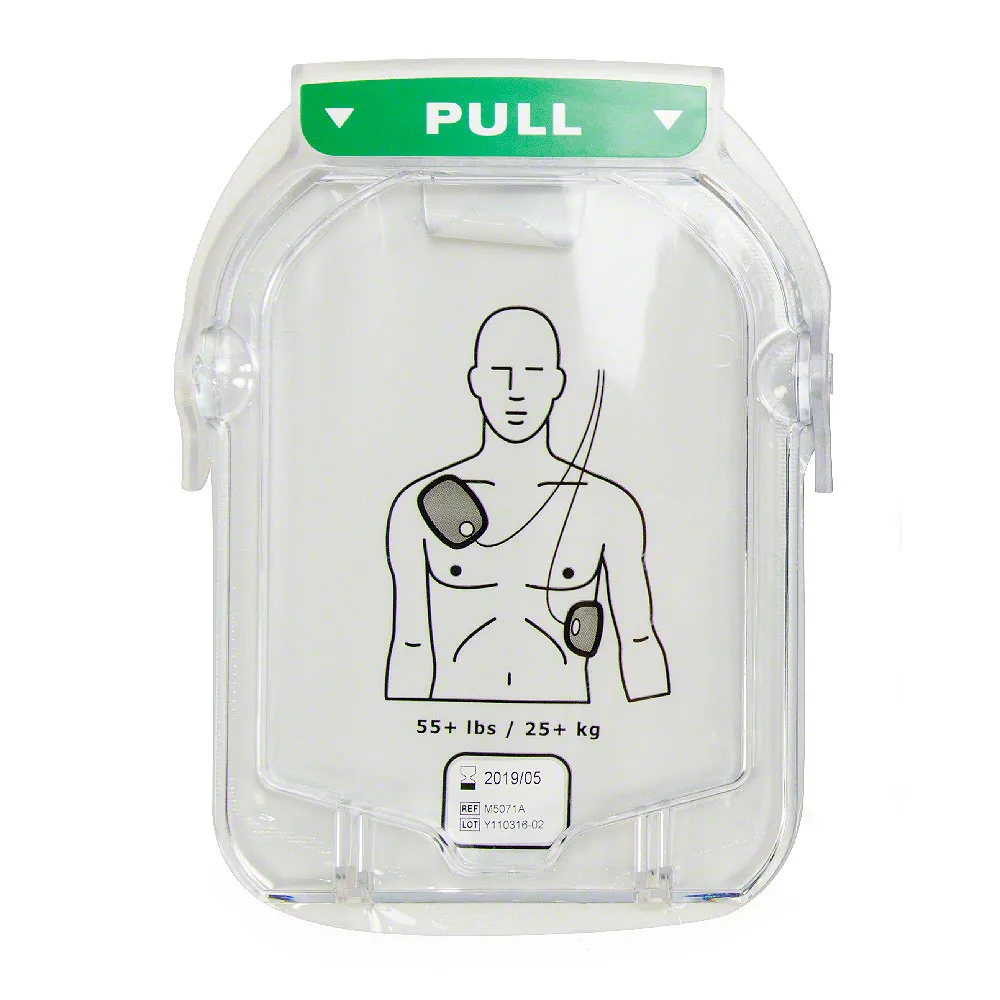

This adult smart pads cartridge contains one (1) set of electrode pads and has the Philips "pull handle" built in. If you're buying electrode pads for your Philips Onsite AED, now would be a great time to check the status and expiration date of yourM5070a HeartStart battery pack, too!

Compatible Philips AEDS

• Philips HeartStart OnSite AED (M5066A) also known as the HS1

• Philips HeartStart Home Defibrillator (M5068A)

How to change your HeartStart Onsite AED Pads

To change the electrode pads for your Philips HeartStart OnSite or Home AED machine:

1. Slide the release latch at the top of the AED to the right to release it from the AED unit.

2. Remove the wrapper from the new cartridge and place the bottom of the cartridge into the bottom of the cartridge compartment on the front of the AED.

3. Press the top of the cartridge down so it snaps into place.

You can watch a video showing Philips SMART pads cartridge replacement for the Onsite AED above.

Philips HeartStart Pads Specifications

• Intended for adults (anyone over 55 lbs. and older than 8 years of age)

• M5071A HeartStart Onsite Adult Pads supply a nominal 150 joules into a 50-ohm load

• Active surface area is 13 square inches (85 square centimeters) per pad

• AED pad cable length is 54 inches (85 centimeters).

HeartStart Onsite AED Pad Alternate Part Number(s):

• 861291
